EASY TO SETUP
Simply mount the gimbal to your flight platform, attach your camera, and you're ready to fly. Your H4‐3D gimbal is calibrated and pre‐programmed to work right out of the box.
CROSS‐PLATFORM COMPATIBILITY
Whether you're flying a DJI Phantom 2 or other platform, the H4‐3D is compatible. Use a DJI A2, WooKong‐M, or NAZA‐M flight controller on
any Flame Wheel for the highest level of customization.*
*The H4‐3D gimbal comes customized for the DJI Phantom 2. If you want to use it with the DJI Flame Wheel or other platform with DJI flight controllers,
the independent GCU module is required. Note NAZA‐M LITE is not supported, and a NAZA‐M V2 PMU must be used if using a NAZA‐M V1 flight controller.
INDEPENDENT IMU
No gimbal can stabilize a camera without tracking how your aircraft is being tilted and moved in real time. That's why the H4‐3D has its own
integrated Inertial Measurement Unit (IMU) constantly collecting precise information and feeding it to the gimbal. This IMU tells the
gimbal exactly how you're moving in the sky and how much countering force is required to keep your camera still, every millisecond.
SMALL, LIGHTWEIGHT, DURABLE
Engineered to add a minimal amount of payload weight to your flight platform, the H4‐3D maximizes flight time without sacrificing quality. By combining a compact yet high strength aluminum
body with a high level of durability, you fly knowing that your camera is secure.
DOWNLOADABLE UPDATES
DJI is constantly working to improve your experience and help you get the most out of your systems. Free firmware updates ensure you are at the forefront of this technology, and are available for your H4‐3D at the click of a mouse.
OPTIONAL GCU MODULE
The Zenmuse H4‐3D gimbal is customized for the DJI Phantom 2 and does not include the optional Gimbal Control Unit (GCU).
If you want to use it with other DJI flight controllers and flight platforms, the independent GCU module is required and sold separately.

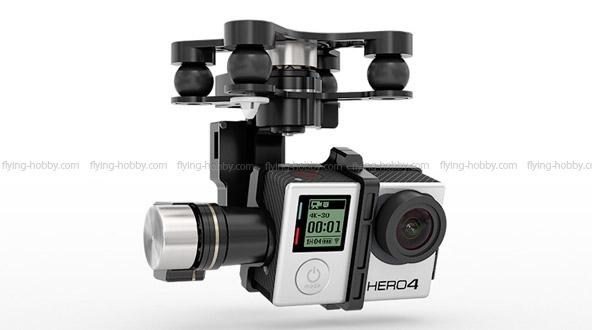

H4‐3D 3‐AXIS STABILIZATION
Forget shaky, unusable aerial footage. Fly your GoPro Hero4 Black with this gimbal and capture smooth, stable content like never before. Your camera is stabilized to prevent unwanted roll, tilt, and pan motions, giving you the confidence to
fly difficult maneuvers and get the shots you want.
Specifications
General
．Zenmuse technology
．3‐axis gimbal
．High precision brushless servo control
．Built‐in IMU module
．Light‐weight
．A2, WKM, Naza‐M, Naza‐M V2 ,Phantom 2 support
．GoPro Hero4 Black support
Peripheral
． Supported Camera : GoPro Hero4 Black
． GCU Input Power : 3S~6S LiPo(12V~26V)
． PC Assistant Software System Requirement : Windows XP SP3; Windows 7; Windows 8
