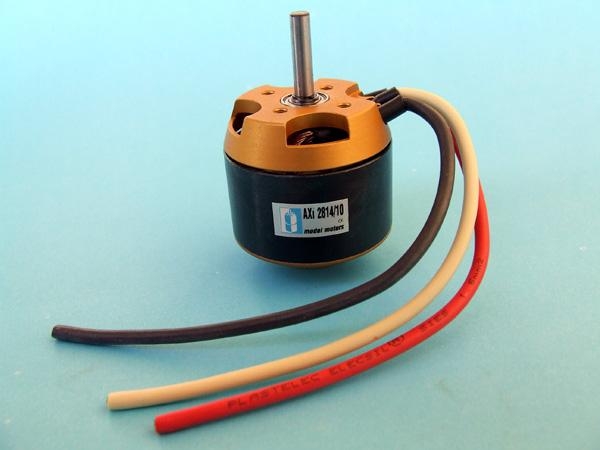

AXI 2814/10 gold line

Cod. axi 2814/10

High torque brushless motor with rotating drum and high power neodym magnets suitable for models of 500 - 600 size, and up to 1900 g in weight. Due to it’s high torque this motor is capable of turning large propellers with a high level of efficiency and without the need for a gearbox. A new feature in the AXI design is a provision for radial mounting (see picture). The optional radial mount set includes: mounting flange, propeller adaptor, securing collar, and screws.

Specification
No. of cells	6 - 8 2 - 3 Li-Poly
RPM/V	1640 RMP/V
Max. efficiency	81%
Max. efficiency current	20 - 30 A (>75%)
No load current / 10 V	2,3 A
Current capacity	45 A/60 s
Internal Resistance	37 mohm
Dimensions (diameter. x lenght)	35x37 mm
Shaft diameter	4 mm
Weight with cables	106 g
