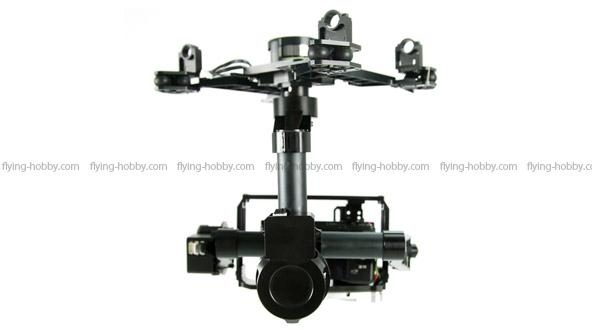

Zenmuse Gimbal Z15-N (Sony Version N7)

Zenmuse is DJI's evolutionary gimbal system with highest accuracy,

fastest reaction and highest stability in current professional market.

With 3 axis gyro, IMU feedback and special servos drive module designed

specially by DJI based on 3 DoF. Zenmuse gimbal can help you take the

best original video/movie from any flexible visual angle. Of course, it has

enhanced hardware and software interfaces to be integrated with DJI's

major product lines Ace series and Wookong-M series. It is the best choice

even for border patrol, surveillance and military missions.

The Required Equipments :

Zenmuse gimbal with the specified camera mounted has to be combined

with DJI professional autopilot system. DJI Multi-rotor Aerial Photography

Platform—Spreading Wings S800 is recommended to gain the best aerial

photography effect, due to advanced aircraft attitude stability control and

well-rounded reliable flight platform.

Solutions :
The most advance DJI UAV autopilot system offers the precision, stability

and safety aircraft operation. In addition with 2/3 axis high-precise and

high-speed attitude-stabilized gimbal of DJI original creation,

and multi-functional ground station control terminal, we can assure you to

take photos and videos with best quality.

Features:

3-AXIS High-End Outstanding Gimbal:

DJI Zenmuse Gimbal is a milestone gimbal system which is developed

for professional filming, aerial photography for commercial use. Even if aircrafts

are in a fast-speed flight, it can still stabilize and control the camera equipment

precisely with highest stability. The precision of control angle is within the

range of ±0.05°, so picture or video output can reach the best effect.

Gimbal Design Customized For Different Cameras:

In order to make the gimbal function the best, DJI provides the customized

Gimbal according to the types of camera. For example, the Zenmuse Z15

supports two types of camera, which are Sony Nex5/7 and Panasonic GH2.

One type of Gimbal can only support one serial of camera. When users want to

use a different series of camera, they need purchase the additional accessories related.

Multiple Control Modes:

Zenmuse gimbal system has three types of control modes, which are Orientation-locked

control mode, Non Orientation-locked control mode and Back to Mid-point

mode (Horizontal mode). The three types of modes can be switched quickly from

one mode to another to meet the different requirements of aerial photography.

With the perfect mode and easy operation of the stable 3-axis Zenmuse gimbal,

users can take excellent aerial works.

3-AXIS Rotation Angle Unlimited:

The 3-axis Zenmuse gimbal system has creative design for its mechanical

structure design. The slip rings inside avoid the complicated wiring. All the wires

of the power and signal lines are integrated into pipes of the Gimbal , which makes

the axis can rotate without any limitation. The Yaw control could reach ±360°,

the Pitch control could reach ±360° and the Roll control could reach

±40° (±360° mechanic continuous rotation).

Built-In Independent IMU Module:

Due to DJI years UAV autopilot system achievement into perfect attitude-stabilized

algorithm, together with the high-precise induction device, it can have perfect performance

on attitude control. Without the requirement of extra installation and connection of

extra wires, it is easy to assemble and it can maintain stable when flying.

Independent Gimbal Controller:

The separated controller equipped to gimbal is connected by the CAN wires

with the main controller of DJI autopilot system. According to gimbal attitude

feedback, it can control the rotation directions and angles high precisely

and also communicate and get real-time control orders from the main

controller of autopilot system.

DJI Gimbal Special Servos Drive Module:

DJI Customized Gimbal Special Servos Drive Module meets all the control

requirements of high performance Zenmuse gimbal. With high precision,

low vibration, high torque characters，DJI Gimbal Special Servos Drive

Module is an excellent combination of drive and module.

HDMI-AV Module:

In order to minimize the payload of aircraft, the video output module with

expanded features like camera shutter is customized to transform HDMI

signal to AV in neat wiring, which ensure the smooth and free movement

of the 3 axial Gimbal.

S-BUS Receiver Support:

It supports most of transmitters and receivers in the market. At the meantime,

it provides Futaba S-Bus receiver support and it is user-friendly.

3-AXIS Rotation Speed Controlled:

Zenmuse Gimbal 3-axis rotation controlling function is simple and

easy to apply. Stick range corresponds with rotation speed of gimbal axis.

Excellent control algorithm guarantee high precision performance of the

axis rotation. Zenmuse gimbal rotation speed will not be influenced even

when the aircraft is in high-speed spinning or quick lifting.

Spec:

Built-In Functions

• Three Working Modes
◊ Orientation-locked control
◊ Non orientation-locked control
◊ Back to mid-point (Horizontal mode)
• Built-in independent IMU module
• DJI gimbal special servos drive module
• HDMI-AV module
• S-Bus receiver support
