This is the X-Cam X100B 2-axis brushless camera gimbal for use with the GoPRO series cameras. This camera gimbal is "Plug and Play" with the stabilization control board pre-installed and setup. With this system, you can simply mount the gimbal to your model, install the camera, calibrate the sensors (easy process explained in the user manual) and your ready to go!

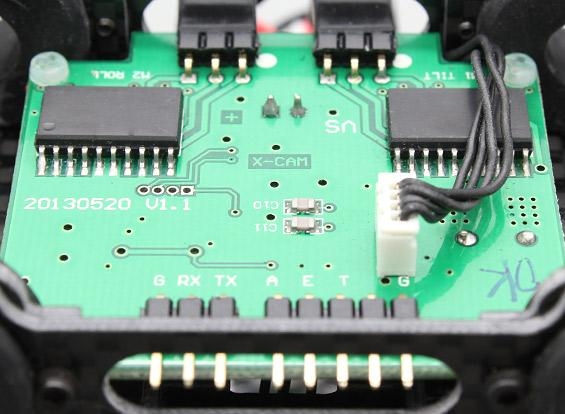

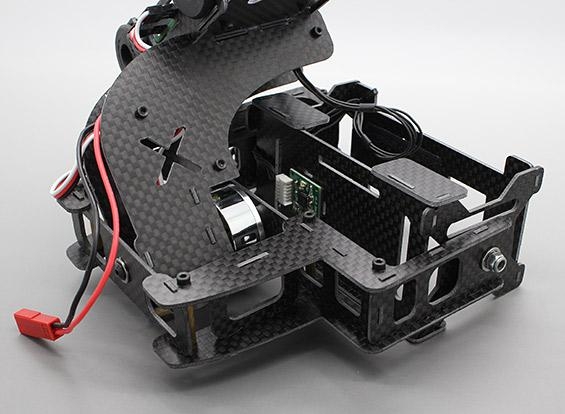

Constructed almost entirely of carbon fiber, this gimbal is both lightweight and strong. The brushless motors, stabilization control board and wire leads are all preinstalled. It features rubber dampened mounts for mounting to a standard twin-rail gimbal mount on your multi-rotor frame.
The X-Cam X100B takes all of the complicated guesswork out of setting up your own brushless camera gimbal system. It doesn't get much easier than this!
*Compatibility: This gimbal is compatible with the GoPRO Hero 1~3 and other similar sized cameras.
Features:
• Designed for use with the GoPRO Hero 1~3 and other similar sized sports cameras
• "Plug and Play" brushless gimbal comes pre-assembled and setup from the factory
• Simply mount to your model, install the camera, calibrate the sensors and fly
• Highly efficient brushless gimbal motors
• Carbon fiber construction offers strength yet is very lightweight
Specs:
Input Voltage: 12V (recommended to use a 12V BEC)
Motor Travel Limit: +/- 90°
Sensor Resolution: 0.015
Twin Rail Mount Width: 59~60mm
Weight: 230g
*Note: The X-Cam Brushless Gimbal PC Assistant software, USB link drivers and User Manual can be downloaded from the "Files" tab below.
