This is the big one! The one the 1/5th Baja boys have been waiting for!
On 8s this ESC is capable of supplying enough current to product in excess of 5800W - That's OVER 7.5 HP!!

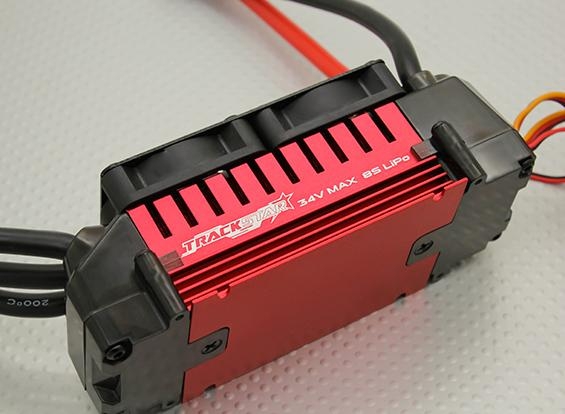

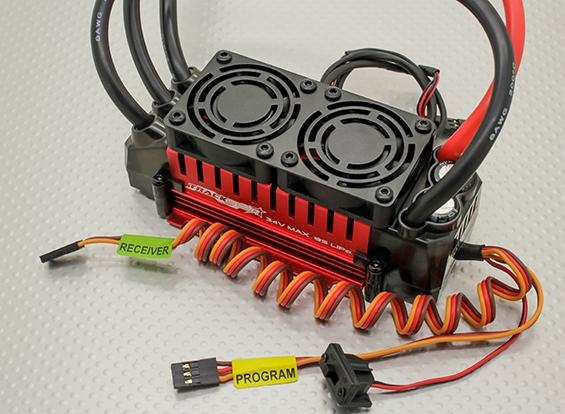

Our New 200 amp Trackstar sensorless ESC for 1/5th scale cars and gas to electric conversions, it features a full alloy housing with two external fans to ensure it keeps its cool, even if pushed a little too hard the inbuilt thermal protection is in place to protect your investment. Then there's the huge 8 Awg battery & motor leads supplying the juice, this esc has been built with one thing in mind - RAW BRUSHLESS POWER!
Our Trackstar 1/5th ESC is an 'Opto' type; meaning that there is no inbuilt BEC, you will need to use an external Ubec to power your RX and steering servo.
This ESC is programmable via the Trackstar Programming card.
Specs:
car size: 1/5th scale
Working current: 200 Amps
Burst current: 1000 Amps
Cell count: 2-8s Lipo
Motor Type: Sensorless Brushless
On/off switch: Yes
Operation: Fwd/brake/rev - Fwd/brake only (Programmable)
Thermal overload protection: Yes
Battery cable: 8 AWG size (8mm bullet connectors)
Motor cable: 8 AWG size (8mm female bullets)
Dimensions: 120mm x 53.5mm x45mm
Weight: 346g
Programming options: (Via Optional programming card)
Brake/Reverse type
Brake amount
Reverse amount
Punch Control
Drag Brake
Throttle Dead Band
Voltage Cut off
Motor Timing
Non disp.
