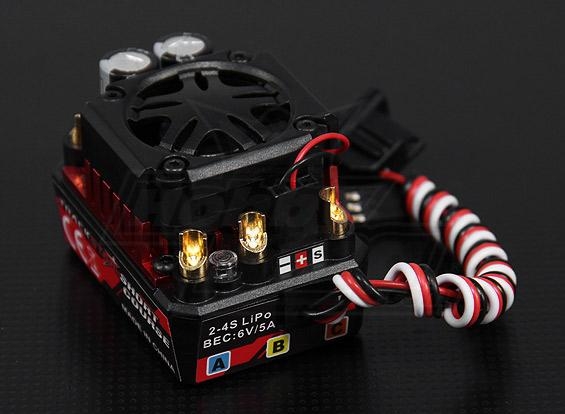

The Turnigy TrackStar 120A Short Course ESC is the latest addition to our TrackStar ESC range. Its optimized for use with 4 pole motors which are becoming quite popular in the Short Course truck class, but of course works well with any sensorless brushless car motor.
Using a Fast Silicon Labs MCU and high quality On-Semiconductor MOSFETs the TrackStar 120A SC ESC sets a new standard in high quality yet affordable car ESCs. With Intelligent MCU logic the TrackStar series ESCs allow extremely precise start up control and positioning feedback from the motor. This translates in to very smooth start up and acceleration.

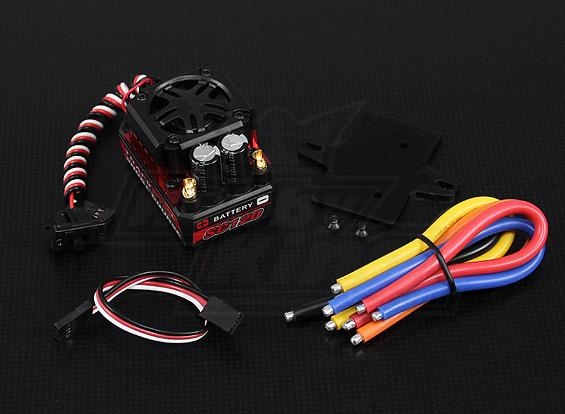

The Turnigy TrackStar 120A SC ESC also boasts a host of programming options not usually found in an ESC at this price and can be programmed with ease via the Turnigy TrackStar programming card (sold separately). The Turnigy TrackStar 120A SC ESC also includes 3 x 12AWG motor wires and 2 x 12AWG power input wires.
This ESC comes with 3.5mm bullet plugs pre-installed so you can connect your motor straight away.
Specification:
Cont. Current: 120A
Burst Current: 760A
Car Size: 1/10th~1/8th
Battery: 2~4 Cell Lipo
BEC: 6V / 5A Output
Motor Type: Sensorless Brushless
Size: 55 x 37.6 x 38.5mm
Weight: 87g
On/Off Switch: Yes
Reverse: Yes
Cooling Fan: Yes
Thermal Overload Protection: Yes
Fail Safe Mode: Yes
Motor Terminals: 3.5mm bullet
Programming Options: (can use stick programming or optional program card)
Brake/Reverse Type
Brake Amount
Reverse Amount
Punch Control
Drag Brake
Throttle Dead Band
Voltage Cutoff
Motor Timing
Motor Direction
