Turnigy TGY-DS525MG HV Digital Coreless Servo w/Alloy Case 7.5kg/.04sec/68g

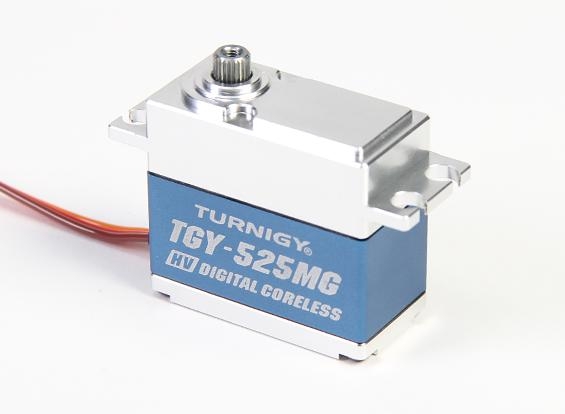

The Turnigy TGY-DS525MG is a very high quality standard size high voltage servo which is digital, ballraced, has an alloy case and is fitted with metal gears for strength and reliability. The specifications are very impressive and because it is quick it would be perfect for the tail control on larger helicopters,or would also make a nice quick steering servo on 1/8th cars and buggies.

Features:
• Full alloy case
• Metal gear train
• Coreless motor
• Twin ball bearings

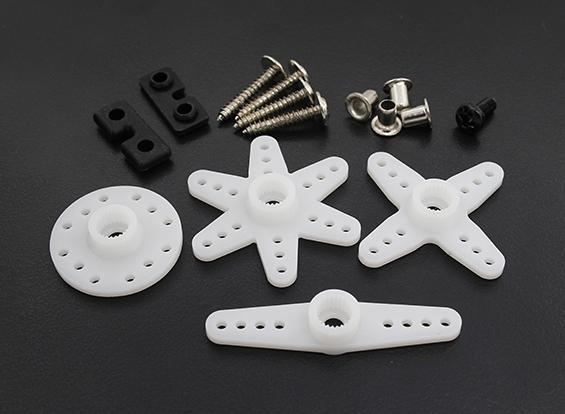

• Servo horns and mounting screws

Specs:
Operating Voltage: 6~8.4v
Torque: 5.5kg @ 6v~7.5kg @ 8.4v
Speed: 0.05sec @ 6v~0.04sec @ 8.4v
Dimensions: 40.5 x 20 x 37mm
Weight: 68g
Working Frequency: 760us
Motor: 17mm dia coreless
Servo Plug: JR type
Servo Lead Length: 320mm

PRODUCT ID: 9355000036-0

Weight (g) 68 Torque (kg) 7.5 Speed (Sec/60deg) 0.04 A(mm) 42 B(mm) 40 C(mm) 38 D(mm) 20 E(mm) 55 F(mm) 27 Update/Add my own data Customer Data
