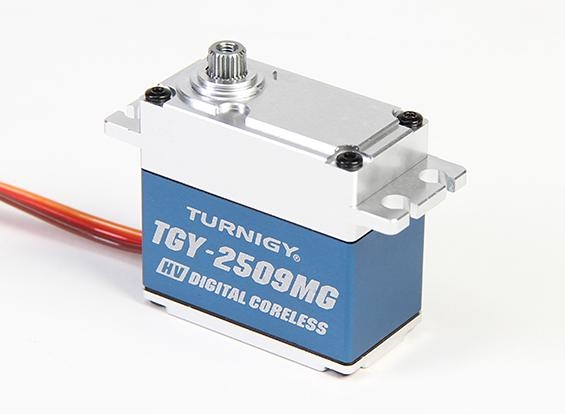

The Turnigy TGY-DS2509MG is a very high quality standard size high voltage servo which is digital, ballraced, has an alloy CNC machined case and is fitted with metal gears for strength and reliability. The specifications are very impressive, very high torque, excellent speed, perfect for larger helicopters and aircraft, would also make a nice powerful steering servo on 1/8th cars and buggies or large power boats.
Features:
• Full alloy CNC machined case
• Metal gear train
• Coreless motor
• Twin ball bearings

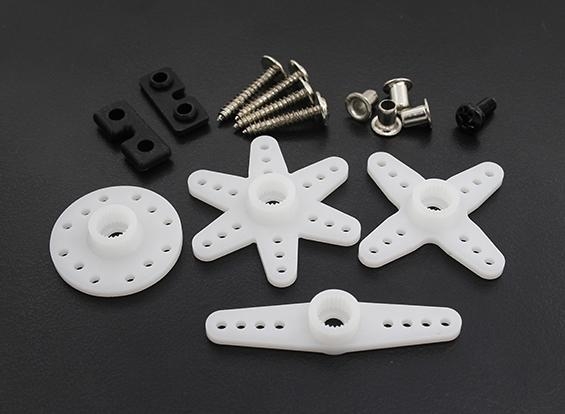

• Servo horns and mounting hardware
Specs:
Operating Voltage: 6~8.4v
Torque: 21kg @ 6v~30kg @ 8.4v
Speed: 0.12sec @ 6v~0.11sec @ 8.4v
Dimensions: 40.5 x 21 x 40mm
Weight: 78g
Motor: 20mm dia coreless
Working Frequency: 1520us/333Hz, 800us~2200us
Servo Plug: JR type
Servo Lead Length: 320mm
PRODUCT ID: 9355000038-0
 |  | | Weight (g) | 78 | | Torque (kg) | 30 | | Speed (Sec/60deg) | 0.1 | | A(mm) | 44 | | B(mm) | 40 | | C(mm) | 40 | | D(mm) | 21 | | E(mm) | 55 | | F(mm) | 28 | Update/Add my own data
