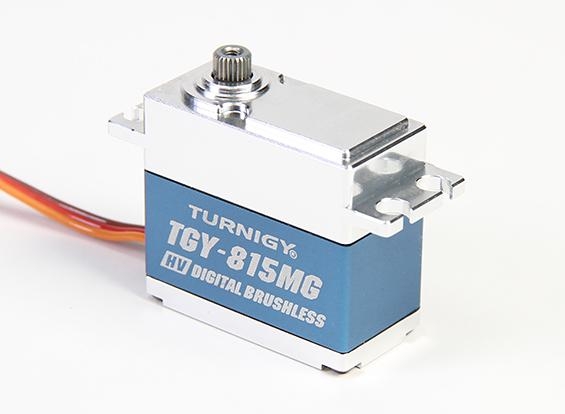

The Turnigy TGY-BLS815MG is a very high quality standard size digital high voltage servo with brushless motor, is ballraced, has an alloy CNC machined case and is fitted with metal gears for strength and reliability. The specifications are very impressive with excellent torque and speed thats perfect for larger helicopter tail rotor controls and 3D aircraft, would also make a nice powerful, fast steering servo on 1/8th cars and buggies or large power boats.
Features:
• Full alloy CNC machined case
• Metal gear train
• Brushless motor
• Twin ball bearings

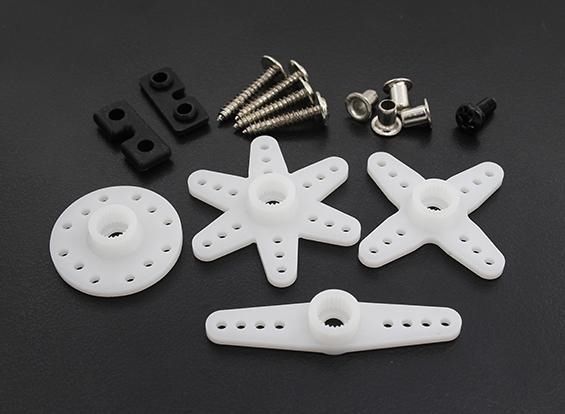

• Servo horns and mounting hardware
Specs:
Operating Voltage: 6~8.4v
Torque: 14kg @ 6v~20kg @ 8.4v
Speed: 0.09sec @ 6v~0.07sec @ 8.4v
Dimensions: 40.5 x 20 x 39.5mm
Weight: 68g
Motor: Brushless
Working Frequency: 1520us/333Hz
Servo Plug: JR type
Servo Lead Length: 320mm
PRODUCT ID: 9355000040-0
 |  | | Weight (g) | 68 | | Torque (kg) | 20 | | Speed (Sec/60deg) | 0.07 | | A(mm) | 42 | | B(mm) | 40 | | C(mm) | 38 | | D(mm) | 20 | | E(mm) | 55 | | F(mm) | 27 | Update/Add my own data
