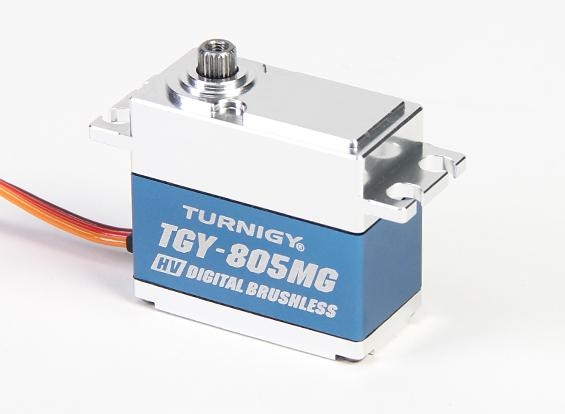

The Turnigy TGY-BLS805MG is a very high quality standard size digital high voltage servo with brushless motor and CNC machined alloy case which is fitted with ballraces and metal gears for strength and reliability. The specifications are very impressive, reasonable torque and high speed, perfect for larger helicopter tail rotor controls and 3D aircraft, would also make a nice fast steering servo on 1/8th cars and buggies or large power boats.
Features:
• Full alloy CNC machined case
• Metal gear train
• Brushless motor
• Twin ball bearings

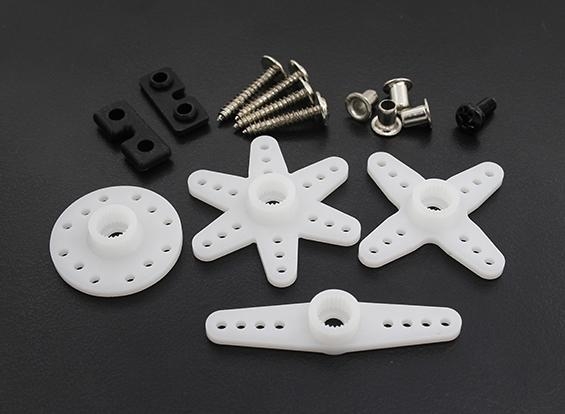

• Servo horns and mounting hardware
Specs:
Operating Voltage: 6~8.4v
Torque: 5.5kg @ 6v~7.5kg @ 8.4v
Speed: 0.048sec @ 6v~0.039sec @ 8.4v
Dimensions: 40.5 x 20 x 37mm
Weight: 68g
Motor: Brushless
Working Frequency: 760us/560Hz
Servo Plug: JR type
Servo Lead Length: 320mm
PRODUCT ID: 9355000041-0
 |  | | Weight (g) | 68 | | Torque (kg) | 7.5 | | Speed (Sec/60deg) | 0.03 | | A(mm) | 42 | | B(mm) | 40 | | C(mm) | 39 | | D(mm) | 20 | | E(mm) | 55 | | F(mm) | 26 | Update/Add my own data
