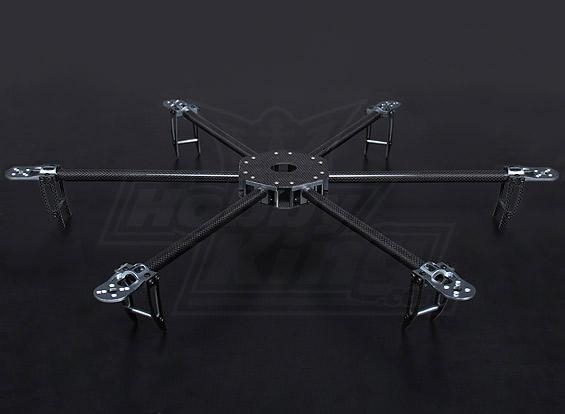

The Turnigy Talon V1.0 Hexcopter frame is crafted from high quality genuine carbon fiber offering both great looks and performance. Our engineers set out to create a Hexcopter frame without compromise, several materials were tested and rejected until they decided that only genuine carbon fiber would meet the goals we had set out to achieve. Every component was weighed and measured shaving mere grams where possible to achieve a light weight yet extremely rigid frame. We didnt allow any compromises and neither should you.
The added lift capacity of a hex configuration makes this frame ideal for carrying larger payloads such as camera systems and other electronic components. This makes for an exceptional camera rig or simply a very agile and powerful multi-rotor frame for aerobatics!
The Talon Hexcopter is constructed from the same high quality components that are used in the hugely popular Talon V2 Quadcopter frame, but we have re-designed the main frame for use in a hex configuration.

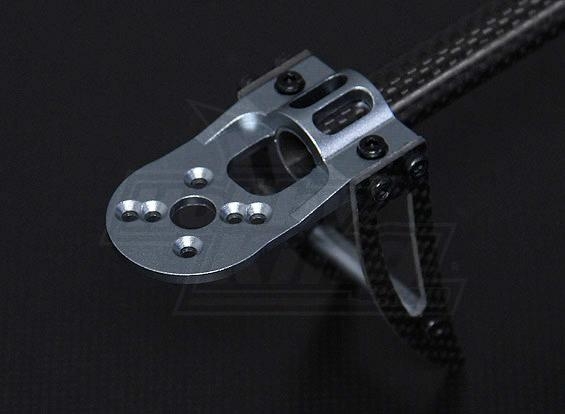

During development of the Talon V2 our team took the already popular Talon frame and studied the design, based on feedback from the multi-rotor community and our own ideas we re-designed the motor mounting plates allowing for top or bottom mounting of 28 and 35 size brushless outrunner motors (see photos for reference of different mounting options). The improved clamping system alone underwent 3 re-designs until our engineers were satisfied that the perfect strength and weight saving combination had been achieved. The center frame clamping system was almost doubled in size to ensure a strong brace on each boom. Every aspect of this frame was thoroughly examined and thought through.
All this attention to detail has resulted in the elegant simplicity that is the Talon Hexcopter, a Hex frame that we are as proud to put our name behind as you will be to own.
We also offer a full line of quality multi-rotor electronics such as multi-rotor control board, ESC, motors and more, so there is no need to compromise on your electronics setup either!
Specs:
Weight: 440g (w/out electronics)
Width: 625mm
Motor Bolt Holes: 16/19/25mm
Requires:
28-XX or 35-XX brushless outrunner motor x 6
18~25A brushless ESC x 6
8x4~10x4.7 propeller x 6 (3 standard/3 reverse rotation)
Multi-rotor control board
2500~3300mAh 11.1V lipoly
4CH Transmitter & Receiver
