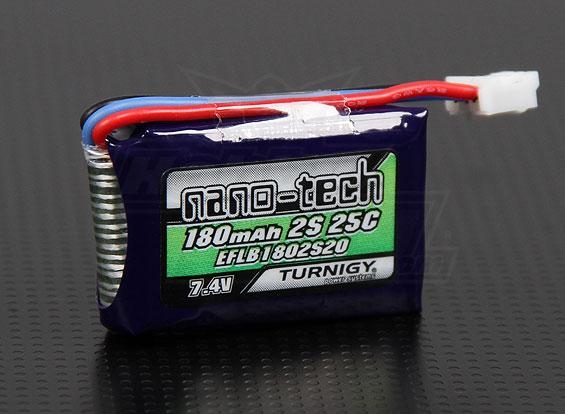

Designed specifically for the E-flite micro series. A direct replacement for EFLB1802S20
More punch, more power and longer flight times are only the beginning. When tested with the E-flite micros, the differences between a regular pack and the nano-tech where remarkable! Power output and flight time were greatly improved due to the higher discharge rate and true capacity.
Bring your E-flite micro to life with the nano-tech upgrade cells!
Spec.
Capacity: 180mAh
Voltage: 2S1P / 2 Cell / 7.4V
Discharge: 25C Constant
Weight: 11.5g
Dimensions: 33.5x10x21mm
Discharge Plug: E-Flight Ultra Micro
Suited to the following models: UMX Beast, UMX Sbach 342 and other E-flite micros
* The nano-core technology in lithium ion batteries is the application of nanometer conductive additives.
1) The nanometer conductive additives form ultrastrong electron-conducting networks in the electrodes which can increase electronic conductivity.
2) These additives create a superstrong ability for imbibition in the carrier liquid to supply more ion channels. This improves the ability of ion transmission and ion diffusion.
Through improving electronic conductivity and ion transmission, the impedance is reduced and the polarization of high rate discharge decreases greatly.
Advantages over traditional Lipo batteries;
-Power density reaches 7.5 kw/kg.
-Less Voltage sag during high rate discharge, giving more power under load.
-Internal impedance can reach as low as 1.2mω compared to that of 3mω of a standard Lipoly.
-Greater thermal control, pack usually doesnt exceed 60degC
-Thickness swelling during heavy load doesnt exceed 5%, compared to 15% of a normal Lipoly during heavy load.
-Higher capacity during heavy discharge. More than 90% at 100% C rate.
-Fast charge capable, up to 15C on some batteries.
-Longer Cycle Life, almost double that of standard lipoly technology
