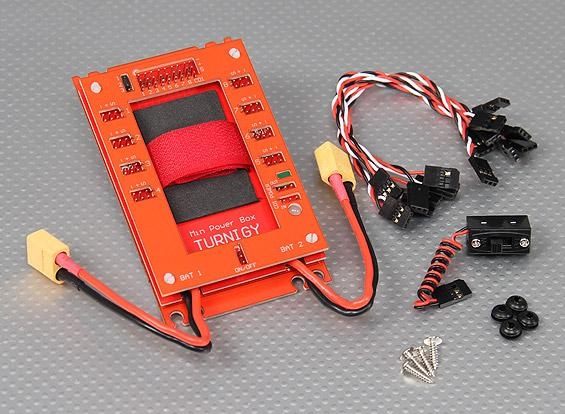

Turnigy introduce the Min Power Box Ubec (RED) suited to 30cc plus gas powered models.
This unit has great features, which include: Dual battery input, 5v isolated linear RX BEC, 30 Amp voltage adjustable Ubec on all output channels, 8 channel RX input with dual outputs on each channel - simplifying dual servo control surfaces.
Great inclusions are the independent 5V linear regulator providing a separate power source for the receiver, optically isolated CDI power & in built remote ignition kill. Receiver, Servo & CDI power sources are completely isolated from each other.
Three selectable UBEC operating voltage options (via Jumper):
Direct connection: uses 5V- 6V input to supply power - voltage pass through from battery input to servo
Voltage drop 0.5V: Reduces a 6v input to 5.5v
Voltage drop 7805: use 7.2V- 8.4V input to supply 6v regulated power
This is the first Power Box system to securely nest the receiver within the power distribution 'block' thereby shortening cable runs, adding protection to your all important receiver & speeding set up time.
Features:
• 5v Linear RX BEC
• 30 Amp Servo UBEC
• 3 step Users adjustable UBEC voltage
• 8 (+1 CDI cut) input channels
• 16 output channels
• 5 Status check LEDs
• Padded receiver tray & Secure mounting
• CDI isolated power
• CDI remote ignition control (remote cut)
• CDI power status indicator light
• CDI power output terminal
• CDI voltage monitor LED
Optional: Input/output voltage display with external power switch
Specs:
Input channels: 8
Output channels: 16
Input voltage: 5-8.4V
Servo UBEC Current: 30A (40Amp Burst)
Output voltage: 5-8.4V (user adjustable; Default is 6v)
RX power: 5v linear bec
Working temperature: -20 to 85 degrees c
Weight: 80g
Dimensions: 116mm x 88mm x 13mm
