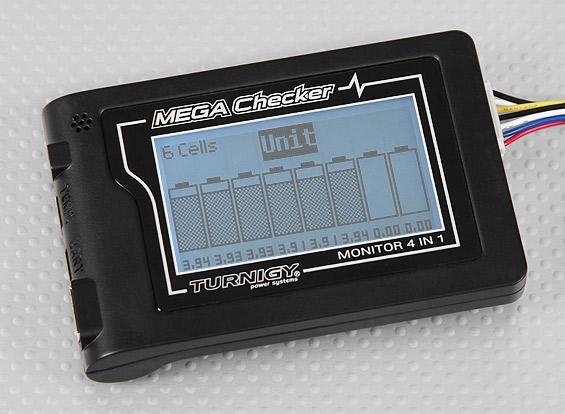

The Turnigy Mega Checker 4-in-1 battery checker/monitor is a low cost, compact unit packed with features that make it an indispensable tool for all modelers using electric power. It's great for airplanes, helis, cars, boats or any other R/C application.
An ideal tool to keep in your toolbox for quick testing, this unit will take all the guesswork out of your battery status. Simply connect your batterys balance plug to the port on the side of this meter to instantly display voltage of each individual cell. The in-built USB port allows for you to log real time graphing during the charge process when connected to a compatible charger via included USB cable. It even offers an internal resistance measurement function, which allows you to easily check the condition of your lithium battery's individual cells.
The Turnigy Mega Checker utilizes an in-built 1200mAh lipoly battery that can be easily recharged via the included USB charge cable. This allows the meter to be used continuously for more than 10 hours on a full charge and can maintain a charge in standby mode for over 1000 hours.
Features:
Individual Lipoly Cell Monitor 1s-8s (+/-0.01V accuracy)
Internal resistance measurement of lithium battery at the state of 2A, 4A and 1KHz
In-built temperature sensing port (sensor sold separately)
In-built rechargeable 1200mAh lipoly battery
Over voltage and reverse polarity protection
Easy to read backlit LCD display
Specifications:
Display: 128x64 Backlit LCD
Standby power consumption: <2mA
Dimensions: 106mm x 69mm x 18mm
Weight: 117g

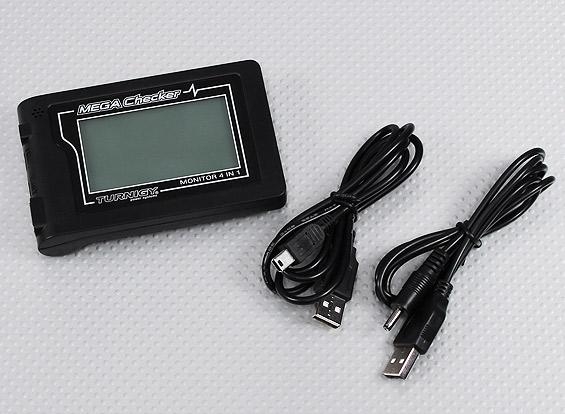

Includes:
Turnigy Mega Checker Meter
USB to Mini USB cable
USB Charge Lead
Non disp.
