This stylish fiberglass Mini-Quad features an integrated PCB frame, simply bolt on the motors then solder your choice of ESC directly to the frame!

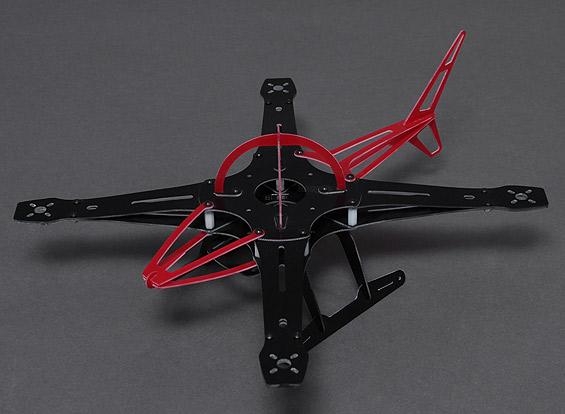

A unique feature of this quad is the airplane-style fuselage structure that attaches to the frame. This gives it a very stylish look and is great for orientation while flying. It is also removable if you choose to fly without it.
An integrated power distribution system is also included making for one of the neatest electronics installs around. All mounting hardware and frame components are included in the kit. All you will require to have this quad in the air is four Turnigy Park 300 1080kv motors, four 10~12Amp ESCs, a set of 8x4 props (2 Clock wise and 2 counter clockwise) an 1000~1300mah 3s 11.1v Lipoly battery, a HobbyKing Multi-rotor control board and your own transmitter and receiver (Tx/Rx).
Features:
Light weight design.

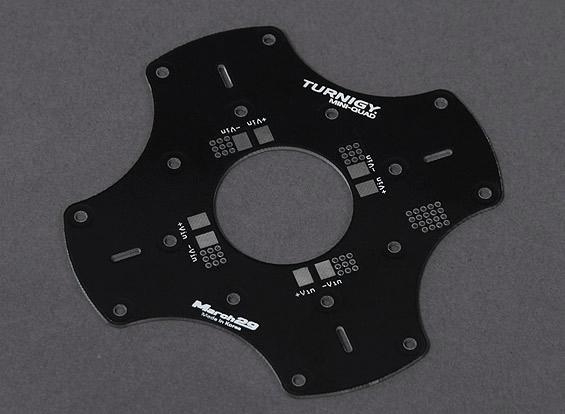

Integrated PCB for tidy component installation.

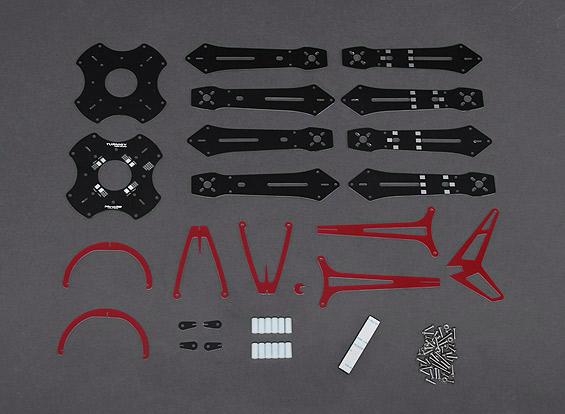

Includes a full set of frame and mounting hardware.
Airplane-style fuselage structure for easy flight orientation.
Specs:
Width: 345mm
Height: 135mm
Weight: 218g (w/out electronics)
Required:
4 x Turnigy Park 300 1080kv brushless motor
4 x 10~12Amp ESC
4 x 8x4 Prop (2CW & 2CCW)
1 x HobbyKing Multi-Rotor Control Board
1 x 1000~1300mAh 3s 11.1v Lipoly battery
Your own radio and 4 channel receiver
