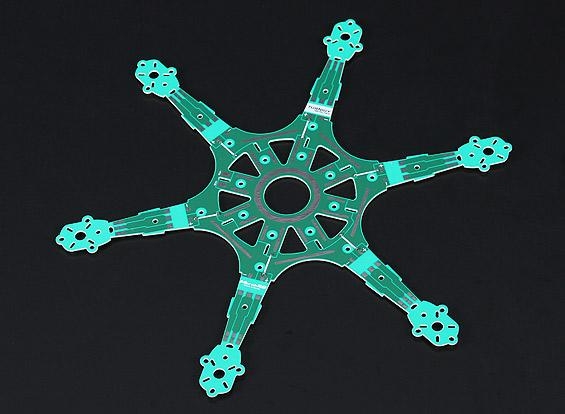

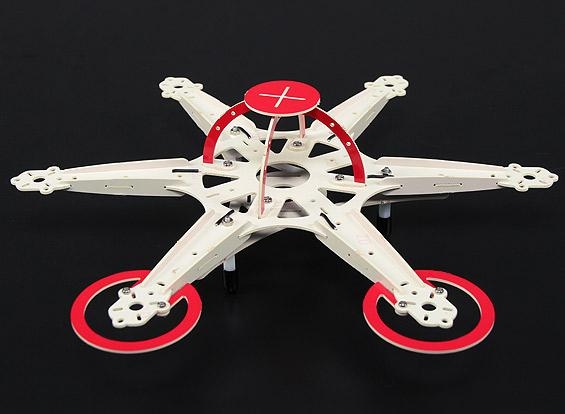

This tiny yet brilliantly designed Micro-Hex features an integrated PCB frame, Simply bolt on the motors then solder your choice of 6amp ESC directly to the frame!
An integrated power distribution system is also included making for one of the neatest electronics installs around. All mounting hardware and frame components are included in the kit. All you will require to have this little monster in the air is six Turnigy T1811-2900kv motors, six 6Amp ESCs, a set of 5x3 Micro-quad props (3 clock wise and 3 counter clockwise) an 800mah 2s 7.4v Lipoly battery, a HobbyKing Multi-rotor control board and your own transmitter and receiver (Tx/Rx).
Features:
Light weight design.
Integrated PCB for tidy component installation.

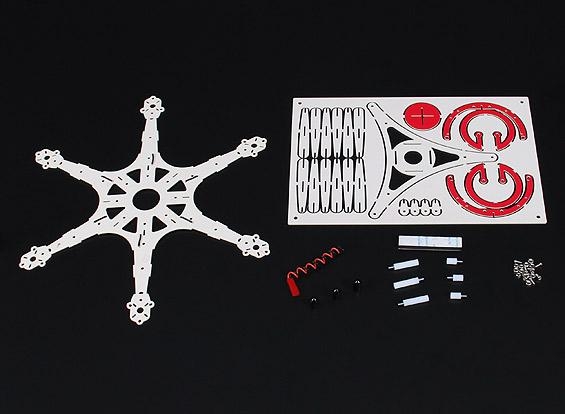

Includes a full set of frame and mounting hardware.
Specs:
Flying Weight: 145g (not including RX and battery)
Width: 250mm
Height: 85mm
Required:
6 x Turnigy T1811-2900kv
6 x 6Amp ESC
6 x 5x3 Prop (3CW & 3CCW)
1 x HobbyKing Multi-Rotor Control Board
1 x 800Mah 2s 7.4v Lipoly battery
24 x M2x8 Bolts (for motor)
24 x M2 lock nuts (for motor)
Your own transmitter and 4 channel receiver.
