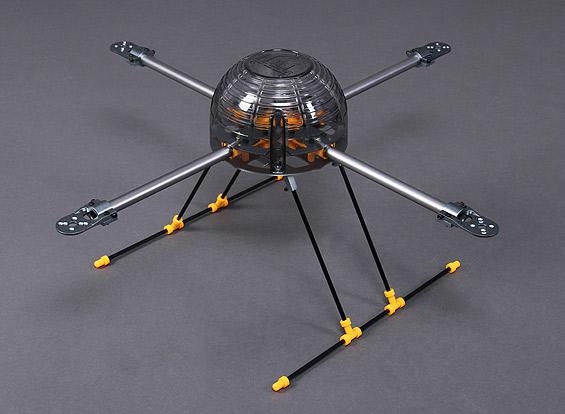

The Turnigy H.A.L. (Heavy Aerial Lift) Quadcopter Frame is crafted from high quality anodized aluminium offering both great looks and performance. The H.A.L. has been designed in-house by our engineering team and manufactured ourselves to keep costs low. We set out to create an aerial video platform that would provide high performance at a price that wont break the bank, and we have achieved that goal!
The extended carbon fiber lading skids and wide variety of motor mounting options make this frame ideal for carrying payloads such as camera systems and other electronic components. This makes an exceptional camera rig for capturing awesome aerial video!*
The H.A.L. also features a stylish removable dome to protect the electronics and provide a tidy look on the main frame. We have even designed an optional aluminium landing skid set for those who do not plan to use this frame for aerial video (see related items below).

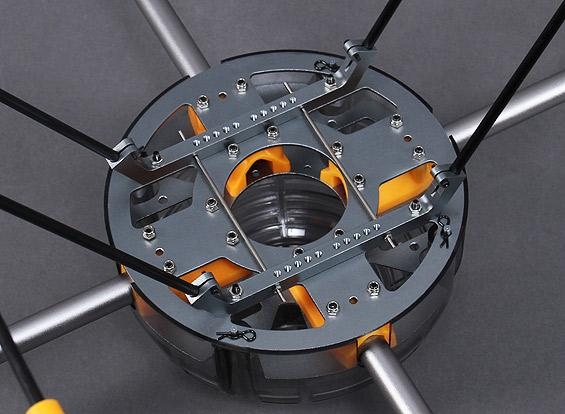

During development of the H.A.L. our team took feedback from the multi-rotor community combined with our own ideas to design motor mounting plates which would allow for top or bottom mounting of 28 and 35 size brushless outrunner motors. The improved motor mount clamping system alone underwent 3 re-designs until our engineers were satisfied that the perfect strength and weight saving combination had been achieved.
We also offer a full line of quality multi-rotor electronics such as multi-rotor control board, ESC, motors and more, so there is no need to compromise on your electronics setup either!
*Optional 3-axis camera gimbal/mount will be available very soon.
Specs:
Weight: 614g (w/out electronics)
Width: 585mm
Motor Bolt Holes: 16/19/25mm
Requires:
28-XX or 35-XX brushless outrunner motor x 4
18~30A brushless ESC x 4
8x4~10x4.7 propeller x 4 (2 standard/2 reverse rotation)
Multi-rotor control board
2200~3000mAh 11.1V lipoly
4CH Transmitter & Receiver
