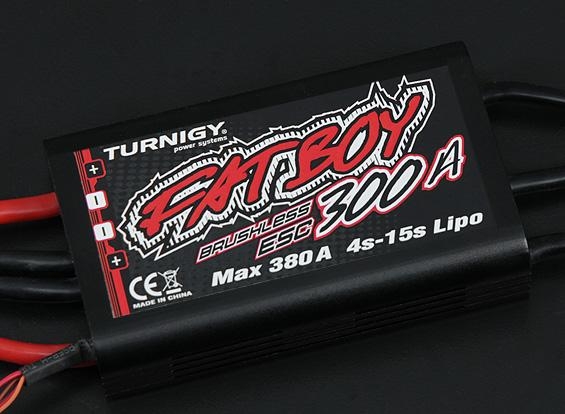

Our most powerful ESC now with a more compact design, wider voltage range and lower price! the Turnigy Fatboy V2 speed controller is rated at a massive 300 Amp continuous current draw and 380 Amp burst!
The Fatboy V2 features a large aluminum heat sink case, dual 8AWG input wires, 8AWG output wires for the motor and anti-spark protection.
The optional programming box (sold separately, see related items below) makes setup of the Turnigy Fatboy fast and easy. This ESC is suited to large scale 100cc plus electric conversions.
Specs.
Voltage: 18.5V-55.5V (4s-15s Lipo)
Current: 300A (380A surge within 10 seconds)
BEC: No BEC (Opto)
Size: 120mm x 72.5mm x 27mm
Weight: 406g
Programming Features
Auto detect Lipo cells
Fully Programmable LVC
Cutoff type
Brake type
Timing advance
Start up type
Governor mode
WARNING
This ESC is suited to R/C model applications only. Do not attempt to use it to power Push Bikes, Mountain boards, go-karts or similar machines. The programming logic is only designed for R/C Plane and Heli use. No warranty will be offered for incorrect use of this item
