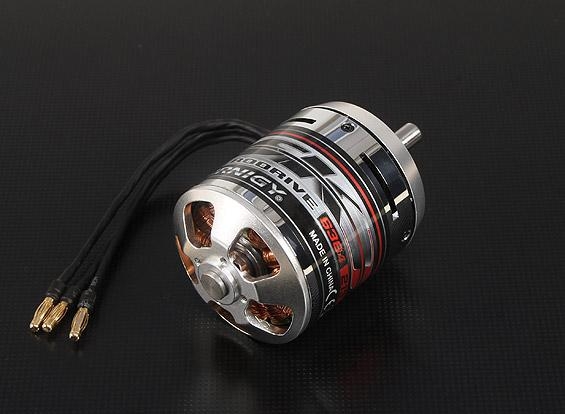

Turnigy SK3 Motors are the next leap forward in motor quality and design. We instructed the engineers to source the best quality magnets, bearings and materials available to them and develop a motor that would not only rival, but surpass the quality of many leading motor manufacturers on the market today.
The result is an efficient, high caliber motor using quality double shielded bearings, sintered Neodymium magnets and a string wound stator ensuring an accurate and consistent winding each and every time.
The Turnigy SK3 motors are suited to modelers who are seeking a quality brushless motor without compromise.
Specs.
Turns: 16T
Voltage: 10S Lipoly
RPM/V: 213kv
Internal resistance: 0.023 Ohm
Max Loading: 65A
Max Power: 2550W
Shaft Dia: 8.0mm
Bolt holes: 32mm
Bolt thread: M4
Weight: 706g
Motor Plug: 4mm Bullet Connector
Prodotto ID: SK3-6364-213
 |  | | Kv (rpm/v) | 213 | | Weight (g) | 706 | | Max Current (A) | 65 | | Resistance (mh) | 0 | | Max Voltage (V) | 37 | | Power(W) | 2550 | | Shaft A (mm) | 8 | | Length B (mm) | 72 | | Diameter C (mm) | 59 | | Can Length D (mm) | 52 | | Total Length E (mm) | 103 | Update/Add my own data
