Functions and Features:

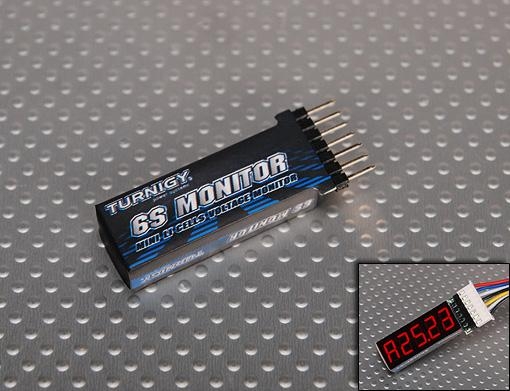

Measure and display the volatge of each cell and total volatage of the 2S-6S Lithium battery packs. Flashing light to indicate low volatge.Large-sized LED segment display with clear and legible characters. High contrast gradient segment suitable for outdoor environment.Compact in form and light in weight, Suitable for use both on hand and fixed on model. Power-saving mode specially designed for real-time monitoring of voltage when installed on the model.
Insert the contact pin of the volatge monitor into the balance charge socket of the lithium battery pack. Becareful that the cathode pin must be inserted right into the cathode of the balance charge socket. Isertion in wrong direction or misallignment should be avoided.
Battery Applicable: 2S ~ 6S Lithium battery
Measuring Voltage : 2.7V ~ 4.5V/cell
Measuring Accuracy :0.01V
Current : dispaly on : 50ma max
Dimensions : 48x18x8mm
Weight : 6g
Non disp.
