The all new Turnigy 3D-H V2 FBL System is breaking all of the rules by offering top-notch performance at an unbelievably low price. Affordability, ease of use and compatible with any helicopter from 250~800 size, the 3D-H V2 makes going flybarless on your machine a no-brainer!
The 3D-H V2 retains all the great features and ease of setup of the original version, but now adds S.BUS functionality, PPM composite signal and DSM2/DSMX satellite receiver support as well!
The Turnigy 3D-H V2 supports just about any servo type, digital or analog, standard or narrow pulse width. Compatible with 90°/120°/140° swashplates and featuring excellent pirouette optimization functionality, the 3D-H V2 ticks all of the right boxes!
We've flown the 3D-H V2 on our own helis and we are very impressed with its performance and ease of setup. It didn't take long at all to have our Assault 700 in the air with this system. All programming is done via the transmitter sticks and confirmed by LEDs on the control unit. This keeps things simple and eliminates the need for bringing a PC to the field should you need to make adjustments.

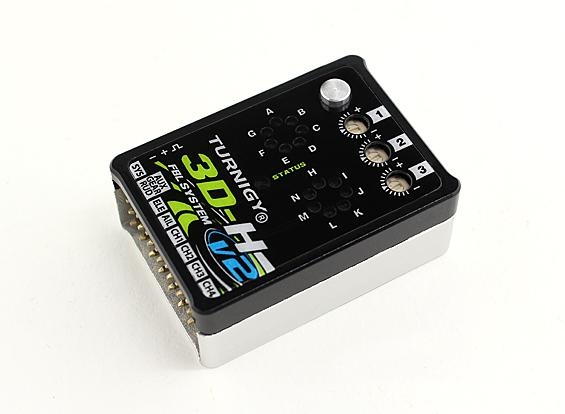

There are 3 adjustable potentiometers on the top of the 3D-H V2 that allow quick adjustments for fine tuning. You can adjust the cyclic gain, cyclic response and tail dynamic (stopping power) by simply turning the pots. This furthermore simplifies setup by allowing for quick and easy fine tuning at the field.
Features:
• High performance 3-axis FBL system
• Compatible with 250~800 size helicopters
• S.BUS, PPM and DSM2/DSMX satellite receiver support
• Pirouette optimization functionality
• 90°/120°/140° swashplate support
• Aluminium case to reduce vibration
• DSM2/DSMX satellite receiver connection lead included
• Easy to setup
Specs:
Size: 35.5x26x13.5mm
Weight: 22g (without wires)
Operating Voltage: 3.5~8.5V
Sensor Technology: MEMS angular rate sensors
Cyclic Servo Type: Digital or Analog 50Hz/65Hz/120Hz/200Hz
Tail Servo Type: Digital or Analog 960us/760us/1520us
Adjustable Cyclic Servo Frequency: 50Hz/65Hz/120Hz/200Hz
Adjustable Tail Servo Frequency: 50Hz/165Hz/270Hz/333Hz

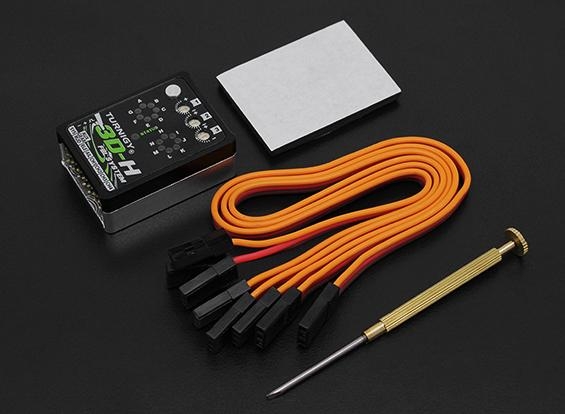

Included in box:
Turnigy 3D-H V2 3-Axis Flybarless System
OrangeRX/Spektrum/JR (DSM2/DSMX compatible) satellite receiver connection lead
Gyro mounting pads
All necessary wire leads
*Note: Updated user manual available for download located under the "Files" tab below.
PRODUCT ID: 9417000003-0
Non disp.
