DETAILS

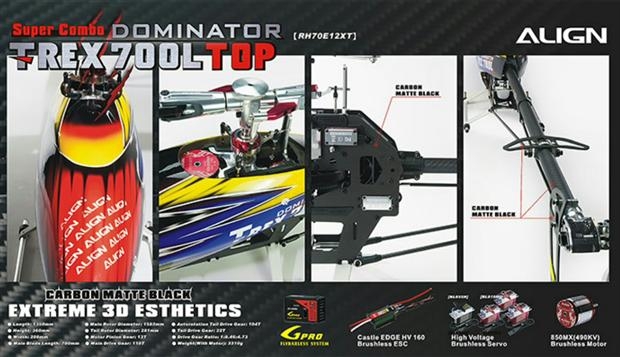

Introducing the highly anticipated, most innovative, brand new T-REX 700L Dominator TOP!
Equipped with new multifunctional GPro flybarless system with active CPU, that processing 20 times faster than before; the freshly new software structure improves system compensation, bring GPro up with precise and agile response, and also keep up-to-date flying performance than ever. The most important is that utilizes with latest iOS and Android APP can be easily and directly adjusted through mobile phone while at the field. New human oriented interface allows convenient and rapid setup and installation.
With fully mighty power energy of the 850MX(490KV) motor paired with Castle Edge HV 160 speed controller for unparalleled power output. The brand new high voltage brushless BL815H/BL855H servos also included featuring with high torque and super efficiency reaction and higher precision; also keep extremely low temperature after flight not only can extend the service life but also be the favorite ones for all our factory pilots. Newly outstanding material and superior design concept are all in one, the elaborate matt black carbon fiber structure, stunning red DFC rotor head set, anti-rotation bracket, and torque tube drive gear set and so on, dramatically enhance model strength and esthetics all at once.
Align's 2014 flagship T-Rex 700L TOP Dominator, incorporates all the top grade upgrades, and the new generation GPro flybarless system, with stability and power exceeding all past expectations. The superior control feel, and attractive look, the T-Rex 700L TOP Dominator is the best choice for any enthusiasts!
Specification
● Length: 1350mm
● Height: 360mm
● Width: 208mm
● Main Blade Length: 700mm
● Main Rotor Diameter: 1582mm
● Tail Rotor Diameter: 281mm
● Motor Drive Gear:13T
● Main Drive Gear:110T
● Autorotation Tail Drive Gear: 104T
● Tail Drive Gear: 22T
● Drive Gear Ratio: 1:8.46:4.37
● Weight(With Motor): 3310g
Accessories
●T-REX 700L DOMINATOR Kits Set x 1 set
●700 Carbon Fiber Blades x 1 set
●105mm 3K Carbon Fiber Tail Blades x 1 set
●850MX Brushless Motor(490KV) x 1
●BL815H High Voltage Brushless Servo x 3
●BL855H High Voltage Brushless Servo x 1
●3K Carbon Fiber Tail Boom x 1
●Aluminum Tail Boom x 1
●Castle EDGE HV 160 Brushless ESC x 1
●Gpro Flybarless system x 1set
Radio transmitter and electronic equipment required for assembly:
●Transmitter(7-channel or more, helicopter system)
●Receiver(7-channel or more)
●6S Li-Po 4500 ~ 5200mAh x 2
●2S Li-Po 1900 ~ 2300mAh x 1
●Digital Pitch Gauge
The 700 DFC flybarless rotor head system utilizes extreme low CG design, effectively reduces resistance during flight, increased flight responsiveness and precision.850MX inherit from the previous 800MXs feature, high efficiency, superior power, excellent torque, low current draw and low temperature. It's capable of maintaining much more consistent torque and head speed through continuous 3D maneuvers, which is particularly special design for 3D flights.Equipped with Align's new generation GPro flybarless system, featuring CPU capable of 20 times faster processing power, along with brand new firmware, and performance improving compensation routines; Allowing Gpro to provide faster and more precise response, reaching the pinnacle of helicopter performance. GPro features ergonomically adjustability through PC, as well as iOS and Android smartphone apps.The latest BL815H and BL855H metallic brushless servos are standard equipment, featuring superior torque, speed with unparalleled efficiency and precision. These servos are highly appraised by team pilots for their low operation heat, contributing to dramatically increased longevity.Brand new frame reinforcement plates and blocks effectively improves frame's anti-torsion ability. The improvement in frame rigidity and solidness is especially evident during extreme 3D maneuvers.T-REX 700L TOP with newly elaborate matt black carbon fiber material on main frame and tail boom, bring much more stylish and delightful presentation than others.Brand new matting carbon tailboom using carbon fiber and aluminum imbedded technology, features light weight and high strength, its unique matting carbon color coupled with whole helicopter, definitely let your helicopter outstanding in the flying field.Utilizes newly designed vertical tail fin, creating a brand new look for T-Rex 700L.High quality new tail gearbox design, combined with new dual point mounted tail pitch control assembly to minimize slops and increase rudder control precision.
Standard equipment
●Castle EDGE HV 160 Brushless ESC x 1
●850MX Brushless Motor(490KV) x 1
●BL815H High Voltage Brushless Servo x 3
●BL855H High Voltage Brushless Servo x 1
●Gpro Flybarless System x 1
Gpro Programmable Flybarless System
ALIGN new multifunctional Gpro flybarless system with active CPU, processing 20 times faster than previous generation. The freshly new software structure improves system compensation, bring GPro up with precise and agile response, and also keep up-to-date flying performance than ever.The most important is that utilizes with latest iOS and Android APP can be easily and directly adjusted through mobile phone while at the field. New human oriented interface allows convenient and rapid setup and installation.
●Brand new CPU, processing 20 times faster than previous generation, bring GPro up with precise and agile response.
●Freshly new software process structure improves system compensation and keep up-to-date flying performance.
●Utilizes with latest iOS and Android APP that GPro can be easily and directly adjusted through mobile phone while flying outdoors.
●New human oriented interface allows convenient and rapid setup and installation.
●Superior flying characteristic remain the same flying control among T-REX 250~800 helicopters.
●Full support receivers and satellites currently on the market, including S.BUS/X.BUS and DSM2/DSMX/DSMJ/DMSS.
Gpro Programmable Flybarless System
●Operating voltage range:DC 3.5V~8.4V
●Operating current consumption:<100mA @4.8V
●X and Y axis Operating Angle Range:-300~+300 degree
●Z axis Operating Angle Range:-600~+600 degree
●Sensor resolution:12bit
●Supports 90/120/135/140 CCPM swashplates
●Spektrum and JR Satellite antennas support (Replaces original factory receiver)
●Futaba S.BUS/JR X.BUS system support
●Rudder support 760μ narrow band servos
●Supports multi-blade rotor heads
●Engine speed governor range:10500-21000 RPM
●Operating Temperature:-20~65 degree
●Operating Humidity:0%~95%
●Size:36.5x25.2x15.6 mm
●Weight:11.5g
●RoHs cerification stamp
