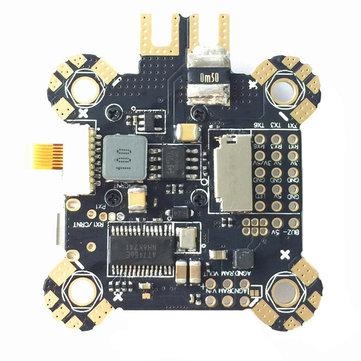

Omnibus F4 Pro Corner F4 Flight Controller AIO OSD PDB BEC and Current Sensor MPU6000 IMU Version
Item Name: Omnibus F4 Flight Controller AIO OSD PDB BEC Current Sensor and LC Filter
Model: F4 Pro Corner
MCU: STM32F405
IMU: MPU6000
Lipo: 3-6S
BEC Output: 5V@2A
Hole Distance: 30.5x30.5mm
- STM32 controls OSD chip over SPI in DMA mode (Betaflight OSD)
- Built-in Current sensor
- Built-in Professional level PDB
- Built-in LC filter for Camera power(max 800ma)
Firmware Update: betaflight_3.2.0_OMNIBUSF4SD
Features:
- STM32F405 MCU
- Use MPU6000 over SPI for the best possible flight performance
- Supports Lipo direct plug in (3-6S)
- With onboard damping box, the MPU6000 runs perfect under 8k Gyro loop.
- with onboard barometer and AB7456 OSD chip for the BetaFlight integrated OSD
- There is only 0.2-0.5 mohm internal resistance from input to each output pads
Package included:
1x Omnibus F4 Flight Controller
2x Cable
1x Pins
