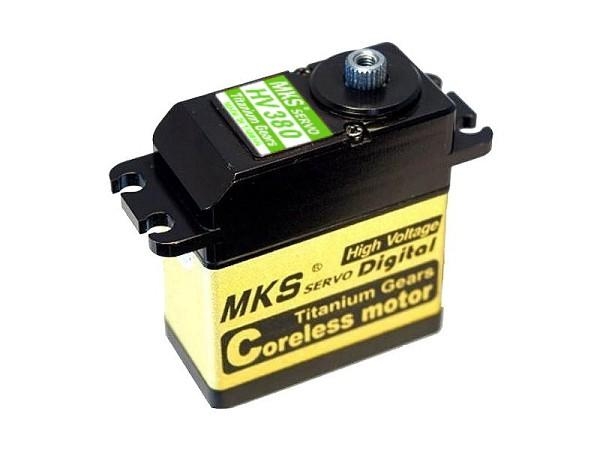

Servo Specification
Suitable as an eCCPM/High Torque cyclic servo
Designed for High-Voltage Application
| Dead band: | 0.0008ms (Default) |
| Control System: | +Pulse Width Control |
| Working frequence: | 1520μs / 333hz |
| (RX) Required Pulse: | 3.5 ~ 7.4 Volt Peak to Peak Square Wave |
| Operating Voltage: | 8.4 ~ 12.0 V DC Volts |
| Operating Temperature Range: | -10 to + 60 Degree C |
| Operating Speed (8.4V): | 0.040 sec/60° degrees at no load |
| Operating Speed (12.0V): | 0.030 sec/60° degrees at no load |
| Stall Torque (8.4V): | 7.30 kg.cm (101.4 oz/in) |
| Stall Torque (12.0V): | 10.40 kg.cm (144.4 oz/in) |
| 360° Modifiable: | NO |
| Motor Type: | Coreless Motor |
| Potentiometer Drive: Driver Type: | Indirect Drive FET |
| Bearing Type: | Dual Ball Bearings |
| Gear Type: | Titanium Gears |
| Programmable: | NO |
| Connector Wire Length: | 15.0 cm (5.9 in) |
| Dimensions: | 40 x 20 x 45 mm ( 1.57x0.97x1.77 in) |
| Weight: | 79.1 g (2.79 oz) |
In Comparison
HV
System | (8.4) sec/60° | (12) sec/60° | (8.4) kg/cm | (12) kg/cm |
| MKS HV 300 | 0.18 | 0.13 | 26.9 | 38.4 |
| MKS HV 380 | 0.04 | 0.03 | 7.3 | 10.4 |
