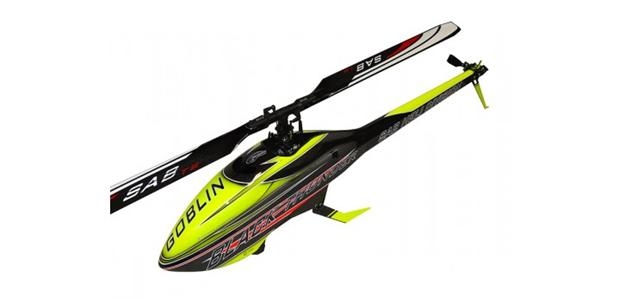

KIT GOBLIN BLACK THUNDER GIALLO/CARBONIO (PALE E PALINI THUNDERBOLT COMPRESI)

POTENZA TOTALE

Black Thunder, potenza ed eleganza!

This project allows to obtain extraordinary performances with batteries between 4000 and 5000mAH 12s.

In order to optimize the weight, the body is made completely out of carbon fiber and the carbon parts enhance the look.

• Main rotor diameter: 1468 mm with 650 mm size blades
• Tail rotor diameter: 285 mm with 105 mm size tail blades
• Approximate weight RTF: 4900 grams
• Cyclic Servos: Standard size (40mm)
• Tail Servo: Standard size (40mm)
• Tank capacity: 650 cc
• Typical battery setup: 12S - 4200mAh, (from 3700 to 5200)
• Typical ESC setup: 130A Esc, 560 Kv motor.
• Typical Motor setup: 560 Kv

• 650 mm ThunderBolt main blades
• 105 mm ThunderBolt tail blades
• Motor Pulley 21T
• 2 Sets Battery Tray

• Black Matte Components. This new head is lighter than Standard Goblin 700 Head

• Big room for ESC

• Boom obtained with different technology, 80 grams less than old G630 solution. Black Matte tail parts

• Serial Number engraved on the main plate

• Full carbon Canopy, New Quick Canopy release. Canopy weight 80gr less than Standard Goblin Canopy

• H0696-S.TUNING LANDING GEAR SET. Full landing gear.

• CK703-S. STRETCH KIT TO 700 SIZE. Included: Boom, Tail Belt, Carbon Rod.Additionally required: Main Blades, Tail Blades 115mm.

• H0430BM-K. HPS3 HEAD BLACK MATTE. Kit conversion to the 3 bladed rotor head.( blades are not included )

• H0429BM-K.3 TAIL BLADES ROTOR BLACK MATTE. Kit conversion to 3 bladed tail rotor.(Tail blades are not included )

• H0707-S. GOBLIN SWASHPLATE LEVELER. Helps you setup a perfectly level swashplate.

• HM060. CARRY BAG 700 SIZE. Allows for safe transport and protects from minor bumps and scratches.

• 1053TB. 105MM 3 TAIL BLADES SET.

• 6303TB. 630MM 3 MAIN BLADES SET.
