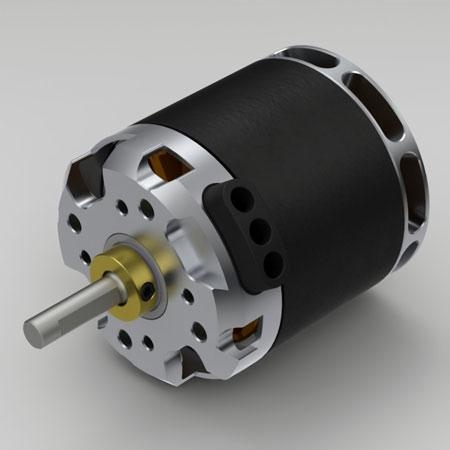

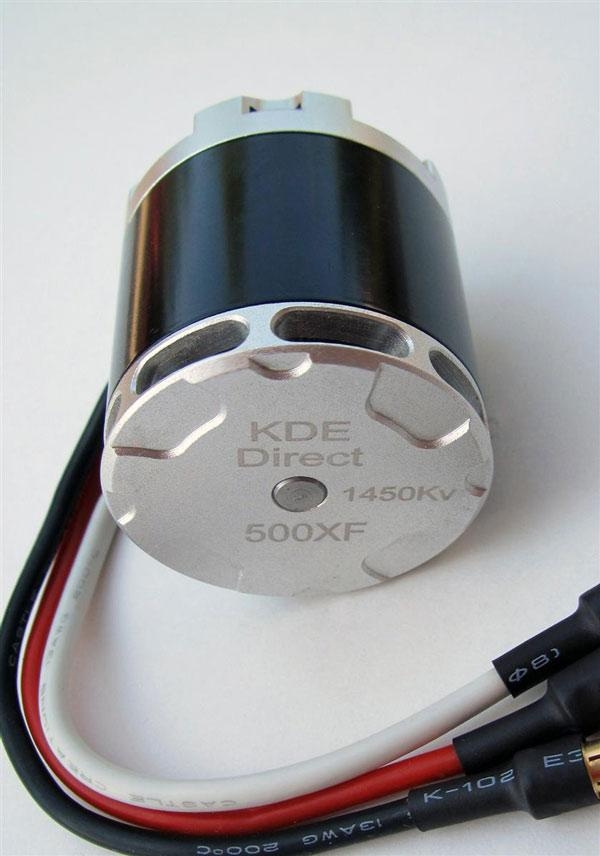

the new KDE Direct 500XF-1175 High-Performance Brushless Motor is an extremely efficient and powerful motor for
any 500-class Electronic helicopter, and was designed as a powerhouse for the ALIGN TREX 500E/ESP series helicopters.
In collaboration with Castle Creations, the motor is custom designed for KDE Direct and used the latest Computer-Aided
Magnetic Field Analysis software to design the most efficient and optimized design for high-level, 3D-competition flight.
The motor is designed to handle extreme-power setups and has been optimized for governor-control algorithms of the
Castle Creations ESC product line; making this motor the most capable offering in the RC helicopter marketplace.
Kv
| 1,450 rpm/V
|
Maximum Power
| 3,500+ W
|
Maximum Efficiency
| 90%
|
Maximum Voltage
| 25.2 V (6S)
|
Io (@10V)
| 2.8 A
|
Rm (Winding Resistance)
| 0.008 Ω
|
Maximum Speed
| 40,000 rpm
|
Rotor Poles
| 8 (12 Pole Stator)
|
Bearings
| Quad, 696ZZ/MR106ZZ
|
Mount Pattern
| M4 x 30mm, M3 x 25mm
|
Stator Class
| 3527, 1Y
|
Shaft Diameter
| 5 mm (6 mm Internal)
|
Shaft Length
| 22 mm
|
Motor Diameter
| 44 mm
|
Motor Length
| 48 mm
|
Motor Weight
| 265 g (290 g with Wires/Bullets)
|
Cooling System
| High-Volume Radial Fan
|
ESC PWM Rate
| 12-16 KHz (Outrunner Mode)
|
Finish:
Clear anodize, mirror-polish CNC gloss endbells
Black electro-plate, CNC gloss central core (flux ring)
