The EPF DSR-46TL set contains everything you need for fitting retracting under-carriage to a 0.40 - 0.60 size model, requiring a trike under-carriage, weighing 1.8kg - 3.6kg. These units offer a simple and quick to install, reliable and elegant solution to the problems associated with traditional air and mechanical retract sets.
The Oleo legs included in this version are alloy link type, with 51mm [2 inch] scale, rubber wheels (main legs, 45mm for front wheel)
The included control unit features leg stall detection, and will shut down any leg that is trapping against the fuselage to ensure the leg will come back down for landing and also features a low power warning light. The retract units feature metal parts for stength and reliability and the front leg is steerable via a servo (not included).
Specifications:
Weight: 257g (all components)
Oleo Length (Pin to axle): Mains-110mm, Front-90mm
Pin diameter: 5mm
Retract Screw Spacing: 40mmx33mm
Operating Voltage: 6v~7.4v
Front Tyre: 45 x 19mm
Main Tyres: 51 x 19mm

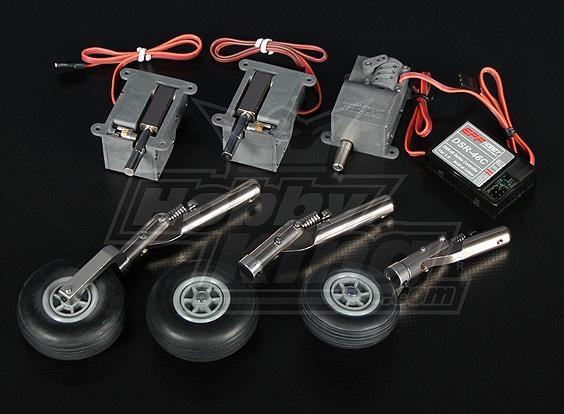

Included:
Control Unit
Instructions
Main Retract (x2)
Front Retract withSteering Horn
Main Oleo Legs with Wheels (x2)
Front Oleo Leg with Wheel
Note: The EPF series of retracts are a high quality, well engineered product manufactured in Taiwan.
