3 Way Air Retract Landing-gear System (Trike-Large)

Complete air up/down Tricycle landing gear system that features adjustable retract speed for both up and down operation and sprung under-carriage legs. The retracts are a high quality all metal construction for reliable service and operation.

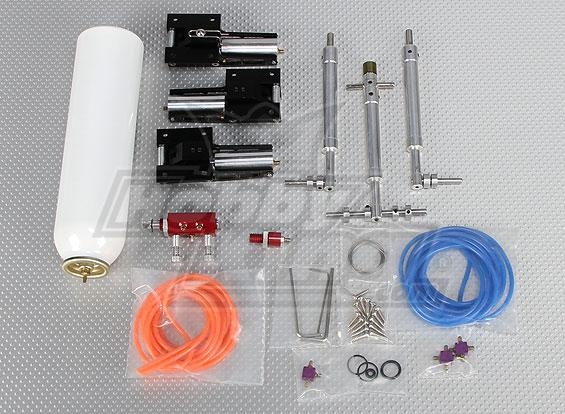

The kit includes air fill valve, nosewheel steering parts, air line, 3 & 4 way joiners, mounting screws, spare o-rings & grub screws and three Oleo Under-carriage legs complete with axles and a 5mm steel mounting pin. System requires 17g servo for operation.

Specs:
For Models Up to: 7kg Flying Weight
Air Tank Capacity: 300ml
Retract Dimensions: 86mmx42mmx25mm
Retract Weight: 64g (per unit)
Undercarriage Pin: 5mm
System Total Weight: 355g

Retract Dimensions:
Total Length: 86.30mm (Inc Nipple)
Depth: 24.56mm
Mounting Plate: 39.55mmx42.20mm
Mounting Holes: 27.70mmx32.20mm

Landing Gear Strut Dimensions:
Length Rear Legs: 115mm (Not Inc Mount Pin)
Length Front Leg: 117mm (Not Inc Mount Pin)
Mount Pin Rear Legs: 5mm
Front Leg: Bronze bushing for steering
Wheel Axle: 4mm
